PERFORMANCE
EchoBeam® is the most reliable and easy-to-use non-contact level sensor transmitter. Flowline’s 80-GHz radar technology is unaffected by most media, process or environmental factors, and our intuitive LevelTapTM App makes configuration simple.
APPLICATION

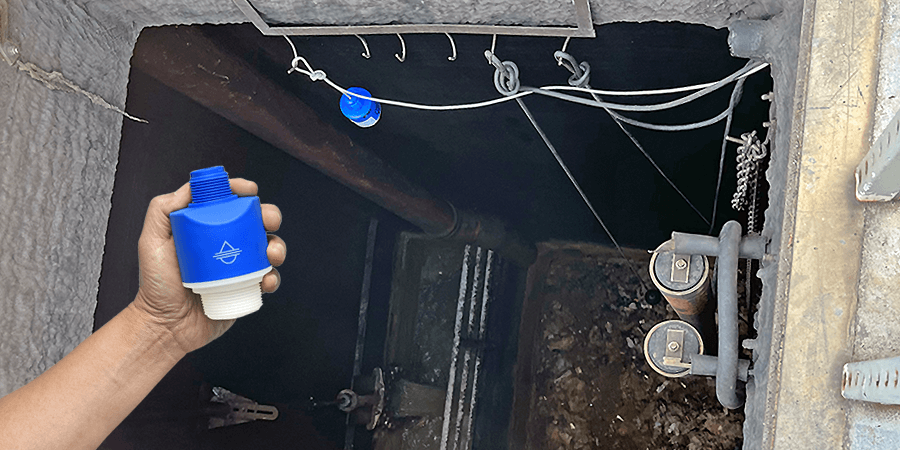

The LR80 general purpose 80-GHz radar level sensor transmitter provides continuous level measurement up to 32.8’ (10m) for liquids or 16.4’ (5m) for solids with a 4-20 mA signal output. The level sensor transmitter is wirelessly configured over Bluetooth via our LevelTapTM App which enables you to see the level, verify the status, and manage the settings of connected level sensor transmitters from the safety of the ground or nearby catwalk. The level sensor transmitter measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder or aggregate solids. Select this level sensor transmitter for tank, sump, lift station, weir, canal, reservoir, bin, conveyor or transfer station applications.
FEATURES
- 80-GHz technology provides reliable, maintenance-free operation
- Measures level height, air gap, tank volume or open channel flow
- Rugged PVDF antenna and enclosure for corrosive liquid or solids
- IP68 rated sensor for harsh outdoor or below grade installations
- Shielded 10m PVC jacketed cable for corrosive level environments
- Zero dead band maximizes the potential fill capacity of small tanks
- Optionally measures through top wall of plastic or fiberglass tanks
- Bluetooth wireless configuration via the LevelTapTM mobile App
- Lowest cost radar sensor for your basic level requirements
CONFIGURATION

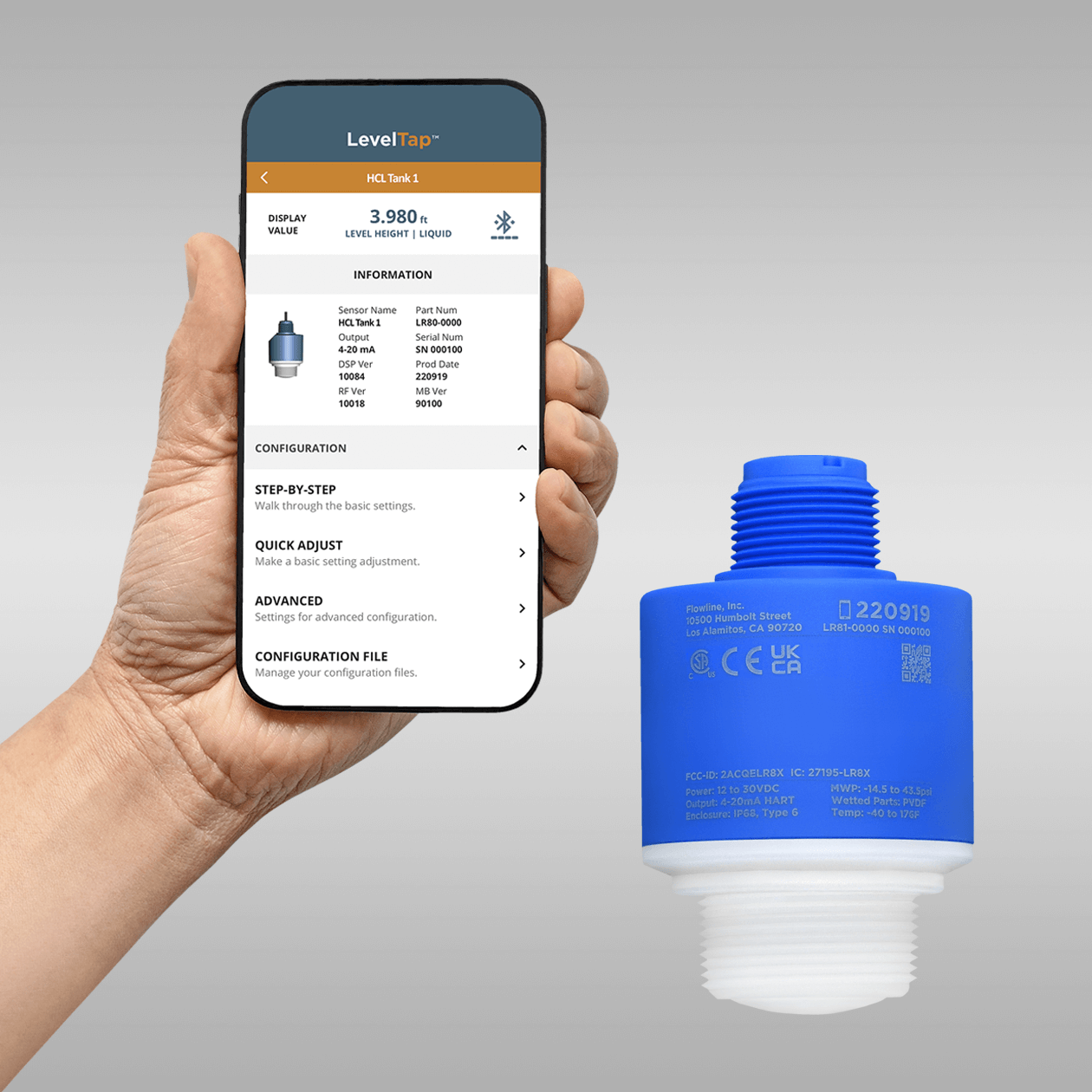

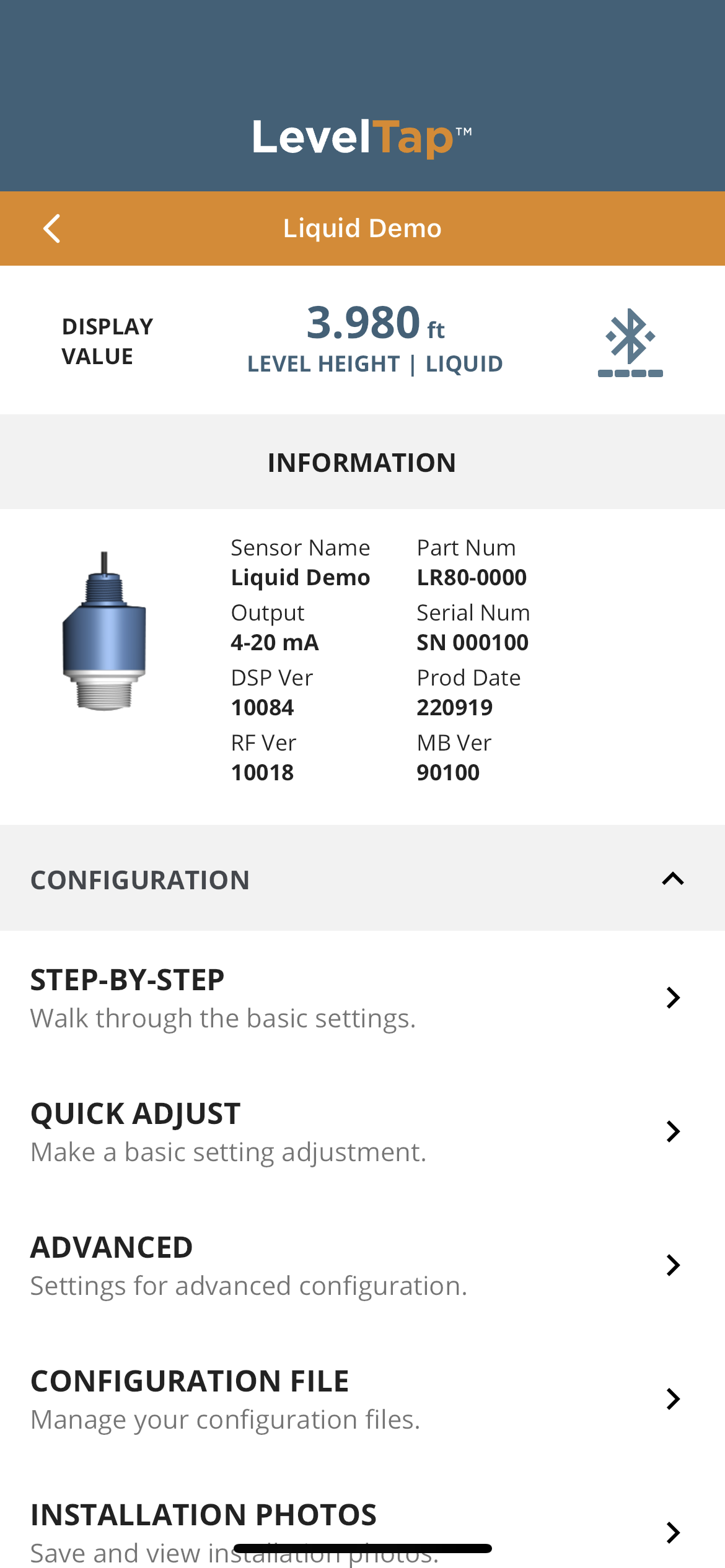

Download the free LevelTapTM App at the Apple Store or Google Play Store, register and go to Demo Sensors. There you can view the level status and step-by-step or advanced configuration examples prior to sensor purchase.
PRICING
| P/N | Description | From | |
|---|---|---|---|
 |
LR80-0000 | GP radar level sensor, 1 1/2″ NPT, 4-20 mA | $795.00 |
| LR80-0010 | GP radar level sensor, 1 1/2″ G, 4-20 mA | $800.00 |

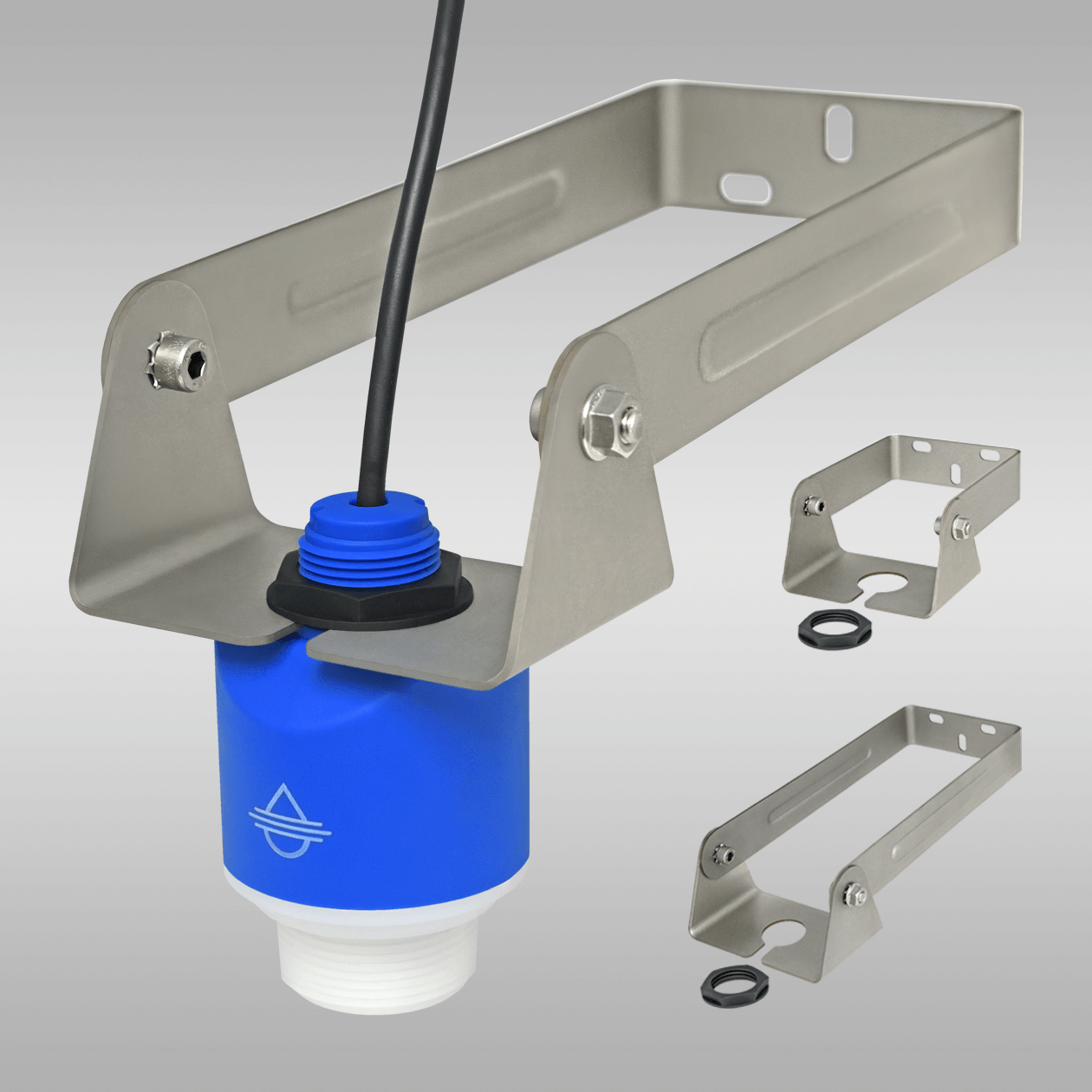

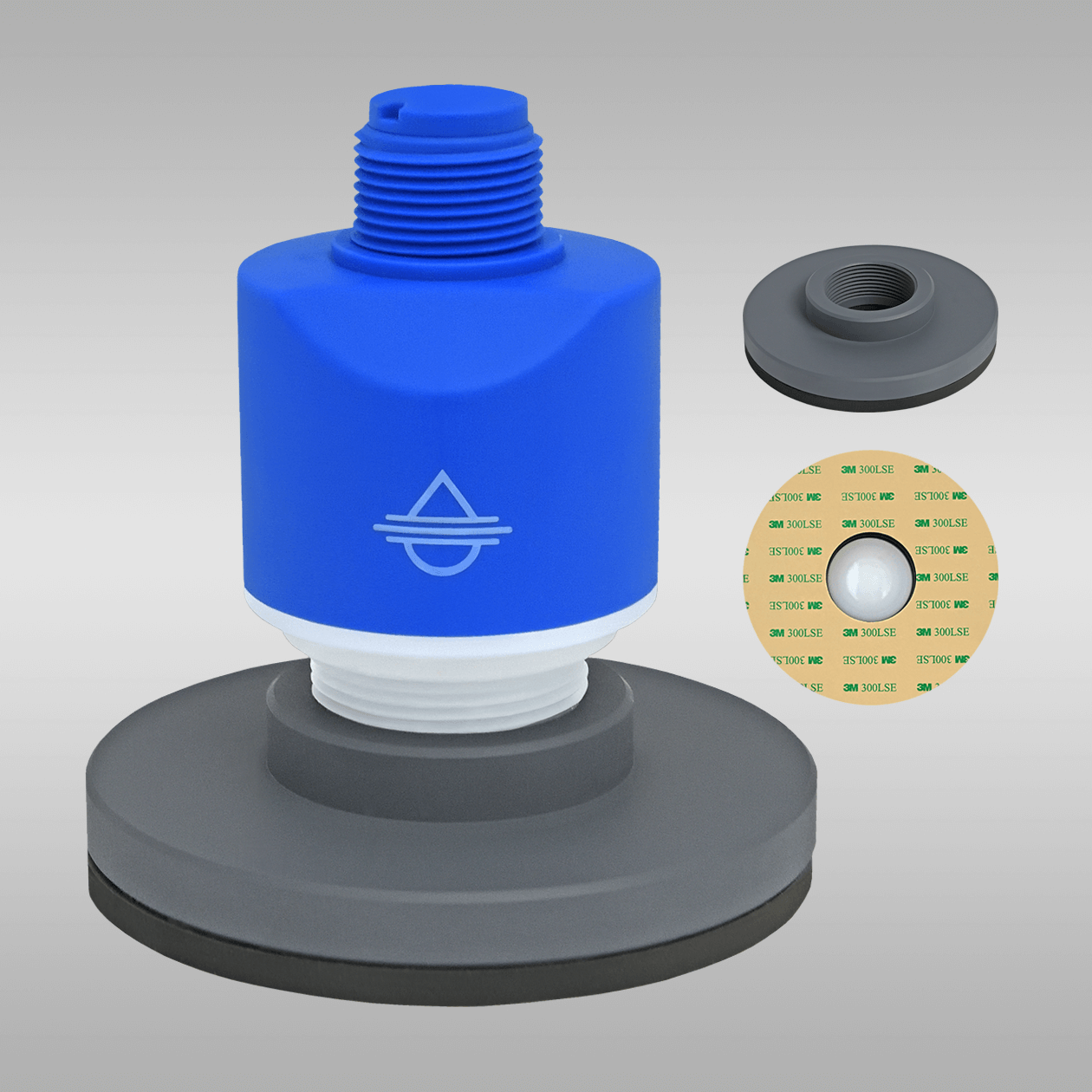

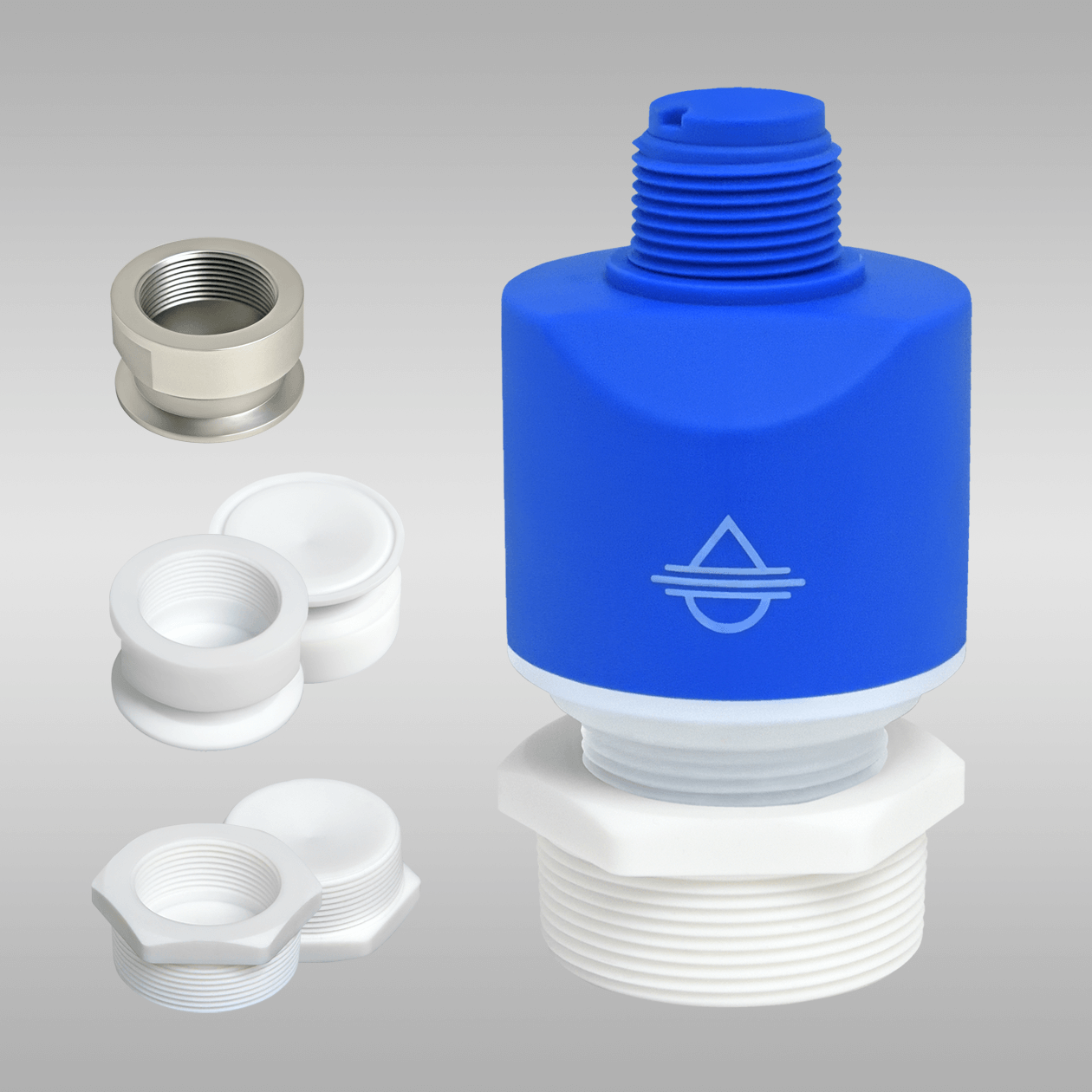

COMPATIBLE ACCESSORIES
| P/N | Description | From | |
|---|---|---|---|
 |
LI55-1001 | GP level sensor controller, 85-265 VAC, relay & repeater options | $700.00 |
 |
LI23-1001 | GP level sensor indicator, 12-30 VDC, relay & repeater options | $502.00 |
 |
LM92-1002 | Single NEMA box, 1/8 DIN, windowed, PC | $458.00 |
 |
LM92-2002 | Double NEMA box, 1/8 DIN, windowed, PC | $490.00 |
 |
LC95-2001 | Power supply, 100-240 VAC, 24 VDC @ 0.45A | $335.00 |
| P/N | Description | From | |
|---|---|---|---|
 |
HB01 | GP cellular gateway, battery powered, 1-4 level sensors | $795.00 |
DOCUMENTATION
Data Sheet | Quick Start | App Manual | cCSAus GP Certificate | Radio Addendum | Sensor 3D Model | Fitting 3D Models | Company Brochure | EchoBeam Brochure
SPECIFICATIONS
Maximum range: Liquid: 32.8’ (10m) with media dielectric ≥ 20 and no agitation; Solids: 16.4’ (5m) with media dielectric ≥ 6 and no dust
Frequency: 80-GHz., W-band, FMCW
Accuracy: 0.4m to 10m: ± 5mm; 0.00m to 0.39m: ± 10mm
Dead band: 0” (0mm)
Beam angle: 8°
Min. dielectric: ≥ 1.6
Bluetooth version: Bluetooth 5.0
Bluetooth range: 26.2′ (8m)
Configuration: LevelTap™ App (iOS & Android)
Memory: Non-volatile
Signal output: 4-20 mA, two-wire
Max. signal dist: 1,000’ (304m)
Signal fail-safe: Selectable high, low or hold last value
Supply voltage: 12-30 VDC
Max. consumption: 22.5 mA
Process temp.: F: -40º to 140º; C: -40º to 60º
Temp. comp.: Automatic
Storage temp.: F: -40° to 176°, C: -40° to 80°
Pressure: -14.5 to 43.5 psi (-1 to 3 bar)
Enclosure rating: Type 6P (IP68)
Encl. material: PVDF (pigmented polyvinylidene fluoride)
Antenna material: PVDF (natural polyvinylidene fluoride)
Cable jacket mat.: PVC (polyvinyl chloride)
Cable seal mat.: Viton GLT (fluoroelastomer)
Cable orientation: Vertical
Shielded cable: 2-conductor
Cable length: 32.8’ (10m)
Conduit connect.: 1” NPT or 1” G
Process mount: 1 1/2” NPT or 1 1/2” G
Mount gasket: Viton GLT (fluoroelastomer) for G thread only
Classification: General purpose (cCSAus)
Approvals: C22.2 No. 61010-1-12
Compliance: FCC: Part 15.256, 15.209, 15C; ISED IC: RSS-102, RSS-211, RSS-247; UKCA RER 2017: 6(1)(a), 6(1)(b), 6(2); CE/RED 2014/53/EU: EN 302 372, EN 302 729, EN 301 489-1, -33, EN 300 328; SRRC: (No. [2002] 353); RoHS, REACH, CRN, conflict minerals
PRODUCT SELECTION
If you want help in selecting a sensor for your application, please submit a Level Questionnaire. An engineer will review your requirements and suggest a product solution via email.
