PERFORMANCE
EchoBeam® is the most reliable and easy-to-use non-contact level sensor transmitter. Flowline’s 80-GHz radar technology is unaffected by most media, process or environmental factors, and our intuitive LevelTapTM App makes configuration simple.
APPLICATION
The LR81 general purpose or intrinsically safe 80-GHz radar level sensor transmitter provides continuous level measurement up to 98.4’ (30m) for liquids or 49.2’ (15m) for solids, with a 4-20 mA with HART, Modbus or SDI-12 signal output. The level sensor transmitter is wirelessly configured over Bluetooth via our LevelTapTM App which enables you to see the level, verify the status, and manage the settings of connected level sensor transmitters from the safety of the ground or nearby catwalk. The level sensor transmitter measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder or aggregate solids. Select this level sensor transmitter for tank, sump, lift station, weir, canal, reservoir, silo, bin, conveyor, transfer station or stockpile applications.
FEATURES
- 80-GHz technology provides reliable, maintenance-free operation
- Measures level height, air gap, tank volume or open channel flow
- Rugged PVDF antenna and enclosure for corrosive liquid or solids
- IP68 rated sensor for harsh outdoor or below grade installations
- Sealed 10m PVC jacketed cable for corrosive level environments
- Zero dead band maximizes the potential fill capacity of small tanks
- Optionally measures through top wall of plastic or fiberglass tanks
- Configuration via LevelTapTM App, HART communicator or Modbus
- Low 9V or 12V operation is ideal for battery powered systems
CONFIGURATION

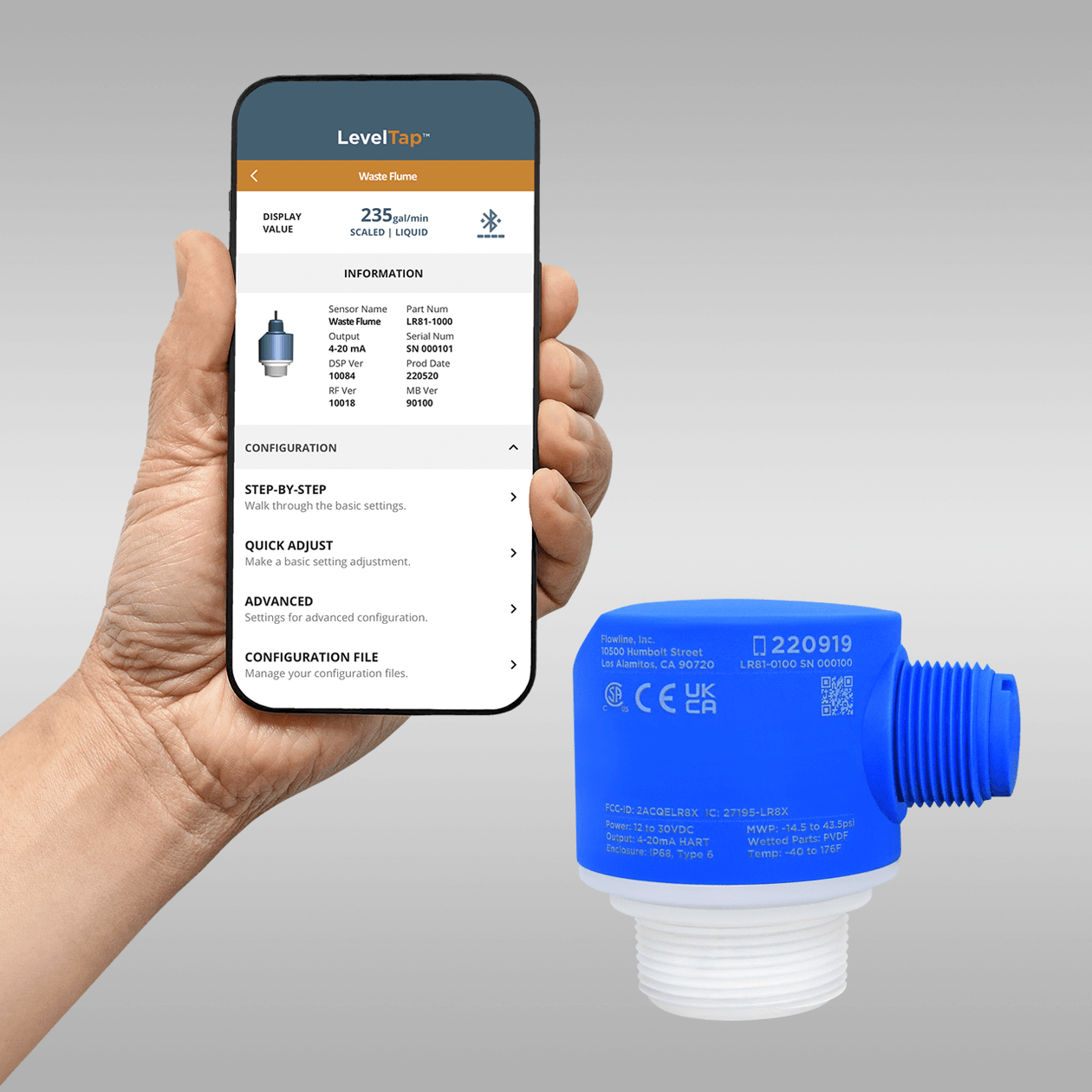

Download the free LevelTapTM App at the Apple Store or Google Play, register and go to Demo Sensors. There you can view the level status and step-by-step or advanced configuration examples prior to sensor purchase.
PRICING
| P/N | Description | From |
|---|---|---|
| LR81-0000 | GP, Vertical cable, 1 1/2” NPT, 4-20 mA w/HART | $955.00 |
| LR81-0100 | GP, Horizontal cable, 1 1/2” NPT, 4-20 mA w/HART | $955.00 |
| LR81-0010 | GP, Vertical cable, 1 1/2” G, 4-20 mA w/HART | $960.00 |
| LR81-0110 | GP, Horizontal cable, 1 1/2” G, 4-20 mA w/HART | $960.00 |
| LR81-0001 | GP, Vertical cable, 1 1/2” NPT, Modbus | $1,130.00 |
| LR81-0101 | GP, Horizontal cable, 1 1/2” NPT, Modbus | $1,130.00 |
| LR81-0011 | GP, Vertical cable, 1 1/2” G, Modbus | $1,135.00 |
| LR81-0111 | GP, Horizontal cable, 1 1/2” G, Modbus | $1,135.00 |
| LR81-0002 | GP, Vertical cable, 1 1/2” NPT, SDI-12 | $1,130.00 |
| LR81-0012 | GP, Vertical cable, 1 1/2” G, SDI-12 | $1,135.00 |
| LR81-1000 | IS, vertical cable, 1 1/2″ NPT, 4-20 mA w/HART | $1,130.00 |
| LR81-1100 | IS, horizontal cable, 1 1/2″ NPT, 4-20 mA w/HART | $1,130.00 |
| LR81-1010 | IS, vertical cable, 1 1/2″ G, 4-20 mA w/HART | $1,135.00 |
| LR81-1110 | IS, horizontal cable, 1 1/2″ G, 4-20 mA w/HART | $1,135.00 |
| LM50-3S21 | Short bracket, 1″ NPT lock nut, 316L | $160.00 |
| LM50-4S21 | Short bracket, 1″ G lock nut, 316L | $160.00 |
| LM50-3S31 | Short bracket, 1 1/2″ NPT lock nut, 316L | $160.00 |
| LM50-4S31 | Short bracket, 1 1/2″ G lock nut, 316L | $160.00 |
| LM50-3S22 | Long bracket, 1″ NPT lock nut, 316L | $220.00 |
| LM50-4S22 | Long bracket, 1″ G lock nut, 316L | $220.00 |
| LM50-3S32 | Long bracket, 1 1/2″ NPT lock nut, 316L | $220.00 |
| LM50-4S32 | Long bracket, 1 1/2″ G lock nut, 316L | $220.00 |
| LM53-0440 | Capped adapter, 1 1/2″ NPT to 1 1/2″ tri-clamp, PTFE | Consult Factory |
| LM53-0444 | Capped adapter, 1 1/2″ NPT to 2″ tri-clamp, PTFE | Consult Factory |
| LM53-2440 | Capped reducer, 1 1/2″ to 2″ NPT, PTFE | Consult Factory |
| LM53-1S80 | Adapter, 1 1/2″ NPT to 1 1/2″ tri-clamp, 316L | $160.00 |
| LM52-1880 | Adapter, 1 1/2″ NPT to 2″ tri-clamp, 316L | $160.00 |
| LM53-4855 | Adhesive tank top fitting, 1 1/2″ NPT, PVC | $160.00 |
| LM53-3850 | Flange, 3″ ANSI x 1.5″ NPT, CPVC, schedule 80 | $302.00 |
| LM53-3S50 | Flange, 3″ ANSI x 1.5″ NPT, 316L | $378.00 |
DOCUMENTATION
Maximum range: Liquid: 98.4’ (30m) with media dielectric ≥ 20 and no agitation; Solids: 49.2’ (15m) with media dielectric ≥ 6 and no dust
Frequency: 80-GHz., W-band, FMCW
Accuracy: 0.4m to 30m: ± 2mm; 0.00m to 0.39m: ± 10mm
Dead band: 0” (0mm)
Beam angle: 8°
Min. dielectric: ≥ 1.6
Bluetooth version: Bluetooth 5.0
Bluetooth range: 26.2′ (8m)
Configuration: LevelTap™ App (iOS & Android)
Memory: Non-volatile
Signal output: _ _ _ 0: 4-20 mA, two-wire, HART 7; 0 _ _ 1: Modbus, RS485, 9600 baud; 0 0 _ 2: SDI-12
Max. signal dist: _ _ _ 0: 1,000’ (304m); 0 _ _ 1: 3,937’ (1200m); 0 0 _ 2: 2,000’ (609m) divided by number of sensors on the network
Signal fail-safe: Selectable high, low or hold last value
Supply voltage: _ _ _ 0: 12-30 VDC; 0 _ _ 1: 9-27 VDC; 0 0 _ 2: 9-30 VDC
Max. consumption: _ _ _ 0: 22.5 mA; 0 _ _ 1 & 2: 1.5 watt
Process temp.: F: -40° to 176°, C: -40° to 80°
Temp. comp.: Automatic
Storage temp.: F: -40° to 176°, C: -40° to 80°
Pressure: -14.5 to 43.5 psi (-1 to 3 bar)
Enclosure rating: Type 6P (IP68)
Encl. material: PVDF (pigmented polyvinylidene fluoride)
Antenna material: PVDF (natural polyvinylidene fluoride)
Cable jacket mat.: PVC (polyvinyl chloride)
Cable seal mat.: Viton GLT (fluoroelastomer)
Cable orientation: Vertical or horizontal
Shielded cable: _ _ _ 0: 2-conductor; 0 _ _ 1: 4-conductor; 0 0 _ 2: 3-conductor
Cable length: 32.8’ (10m)
Conduit connect.: _ _ 0 _: 1” NPT; _ _ 1 _: 1” G
Process mount: _ _ 0 _: 1 1/2” NPT; _ _ 1 _: 1 1/2” G
Mount gasket: _ _ 0 _: N/a; _ _ 1 _: Viton GLT (fluoroelastomer)
Classification: 0 _ _ _: General purpose, cCSAus; 1 _ _ 0: Intrinsically safe, cCSAus, ATEX, IECEx
Approvals: 0 _ _ _: C22.2 No. 61010-1-12; 1 _ _ 0: Ex ia IIC T6…T4 Ga Ex ia IIIC T85…T135 Da Class I, Zone0, AEx ia IIC T6…T4 Ga Zone 20,AEx ia IIIC T85…T135 Da Class I, Division 1, Groups A,B,C,D T6…T4 Class II, Division1, Groups E,F,G T6…T4
Entity parameters: 0 _ _ _: N/a; 1 _ _ 0: Install per control drawing #610130
Compliance: FCC: Part 15.256, 15.209, 15C; ISED IC: RSS-102, RSS-211, RSS-247; UKCA RER 2017: 6(1)(a), 6(1)(b), 6(2); CE/RED 2014/53/EU: EN 302 372, EN 302 729, EN 301 489-1, -33, EN 300 328; SRRC: (No. [2002] 353); RoHS, REACH, CRN, conflict minerals
