APPLICATION

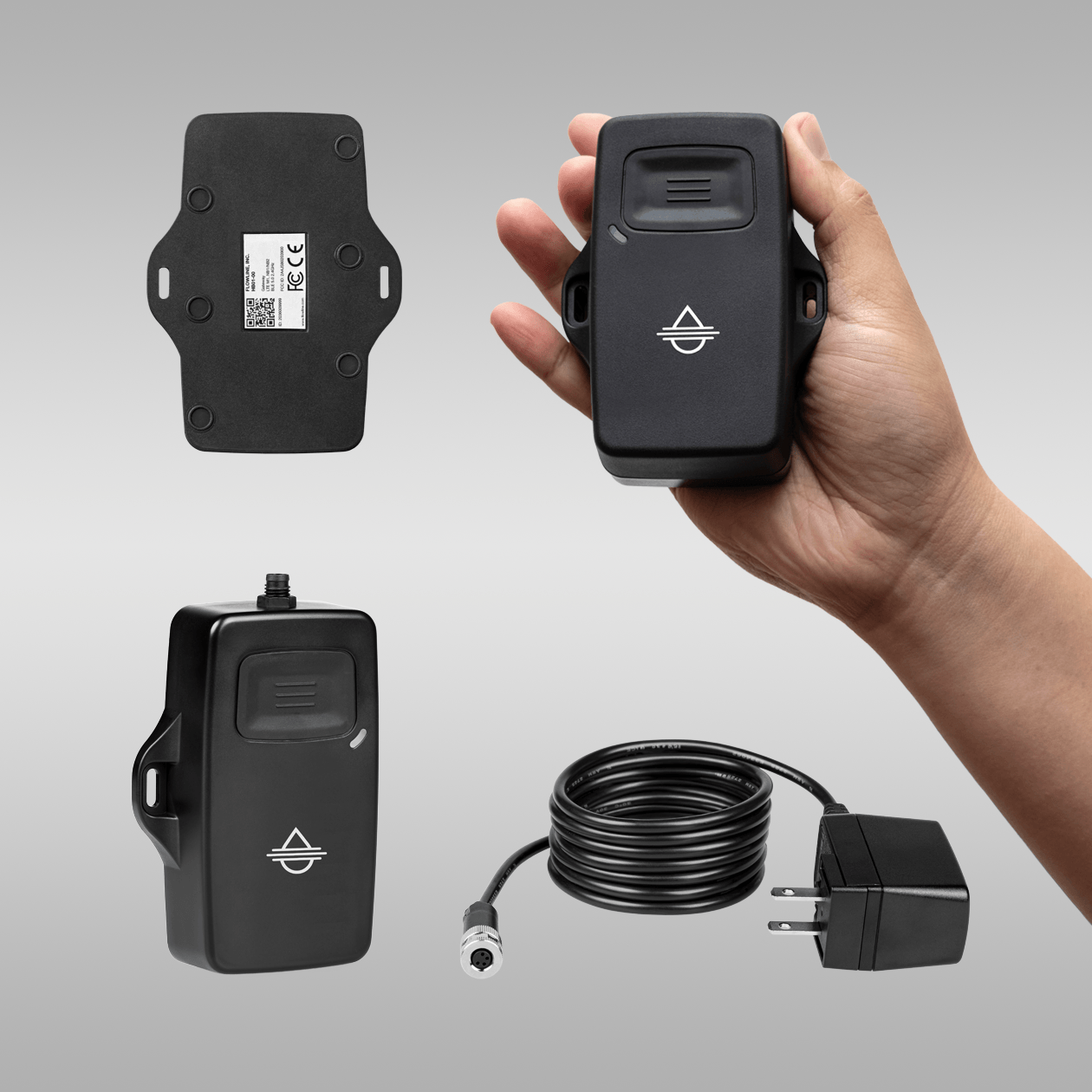

The LevelHub wireless, battery-powered remote tank level monitoring gateway enables users to easily record, transmit, and view tank or silo data from a phone or browser, while sending alerts for high and low levels to keep stakeholders informed. The gateway periodically wakes to collect data via Bluetooth from up to four EchoBeam 80-GHz radar level sensors. Data is transmitted over the T-Mobile LTE-M network in the US and Canada or Vodafone in the EU and UK to Flowline’s secure AWS cloud server, where it can be accessed through the LevelTap mobile App or the LevelHub.io website. Configuration is easy via the App or website, allowing users to grant view-only access to team members, set scan and transmission intervals, and enable email or push notification alerts. Data is exportable in CSV, JSON or API formats, and site locations can be viewed on a geomap. To start, purchase a battery or DC powered gateway, configure 1-4 sensors to it, and activate the data service by paying a subscription fee of $195 USD for 1-year on the website with a credit card.
FEATURES
- Transmits level, location, alerts and battery status
- Viewable on LevelTap App and LevelHub.io website
- Adjustable data scanning and transmission intervals
- Optional lithium battery lasts up to 8 years in service
- Secure data transmission with end-to-end encryption
- Easy to install, configure and run within 15 minutes
- PBT enclosure rated IP67 or IP66 for industrial use
BENEFITS
What’s the cost of running out of chemicals, having full tanks awaiting pick-up, making inefficient truck deliveries or pick-ups, or expediting the above to your company, customers and suppliers? What if you could reliably measure, easily setup and securely share level data where and when it’s needed with field and office stakeholders? Now you can with EchoBeam sensors, LevelHub gateways and the LevelTap App.
PRICING
| P/N | Description | From | |
|---|---|---|---|
 |
HB01-01 | GP cellular gateway, battery powered, 1-4 level sensors Requires subscription of $195 USD/year payable on LevelHub.io |
$795.00 |
| HB01-11 | GP cellular gateway, DC powered, 1-4 level sensors Requires subscription of $195 USD/year payable on LevelHub.io |
$995.00 |
COMPATIBLE ACCESSORIES
| P/N | Description | From | |
|---|---|---|---|
 |
LR80 | GP level sensor, 4-20 mA, 10m range | $835.00 |
 |
LR81 | GP or IS level sensor, 4-20 mA w/HART, Modbus or SDI-12, 30m range | $1,005.00 |
 |
LR83 | GP or IS level sensor, 4-20 mA w/HART or Modbus, 30m range | $1,110.00 |
 |
LR85 | GP or IS level sensor, 4-20 mA w/HART or Modbus, 60m range | $1,235.00 |
DOCUMENTATION
SPECIFICATIONS
Wireless comm.: Standard: CAT-NB2/CAT-M1 (Aka NB-IoT og LTE-M), BLE 5.x; LTE-band: B2, B3, B8, B12, B20 software update over air (SUOTA); SIM-card: e-SIM
Cellular networks: T-Mobile (US & Canada), vodafone (EU & UK)
GNSS positioning: GPS, GLONASS, Galileo, BeiDou
Power: -01: 3.6V high power lithium manganese (Li-Mn) battery -11: 5-12 VDC (ships with 100-240 VAC, 50-60 Hz power supply)
Est. battery life: -01: Up to 8 years (based on 4 scans per hour and 1 transmit per day with good LTE-M signal quality)
Data transmit: Level, location, alerts & battery status
Configuration: LevelTap™ App (IOS & Android)
Browser interface: LevelHub.io
Data export: CSV, JSON, API formats
Memory: Non-volatile
Operating temp.: F: -22° to 176°; C: -30° to 80°
Enclosure rating: -01: Type IP67 -11: IP66
Enclosure mat.: PBT (polybutylene terephthalate)
Weight: 8 oz (255 grams)
Classification: General purpose
Compliance: FCC, CE, RoHS, REACH
CONFIGURATION
Download the free LevelTapTM App at the Apple Store or Google Play Store, and register to create your account. Following initial setup using LevelTapTM, LevelHubTM data can be viewed and additional configuration changes can be made through both LevelTapTM and the LevelHub.io website. Last, assign your EchoBeam sensors to LevelHub through LevelTap and you’re done.
BATTERY POWERED OR DC POWERED
LevelHub is available in battery powered and DC powered versions. Battery life depends on the configured scan and transmit intervals and on LTE-M signal quality. In factory default (where the gateway wakes to scan for data every 15 minutes and transmits data every 6 hours) the battery life exceeds 5 years with good signal quality. Thus shortening either interval reduces battery life, and increasing it extends battery life. Alternatively, the DC powered version ships with a power supply, and supports scan and transmit intervals as short as every 5 minutes.
SYSTEM
Click here to view the LevelHub system architecture.
