APPLICATION

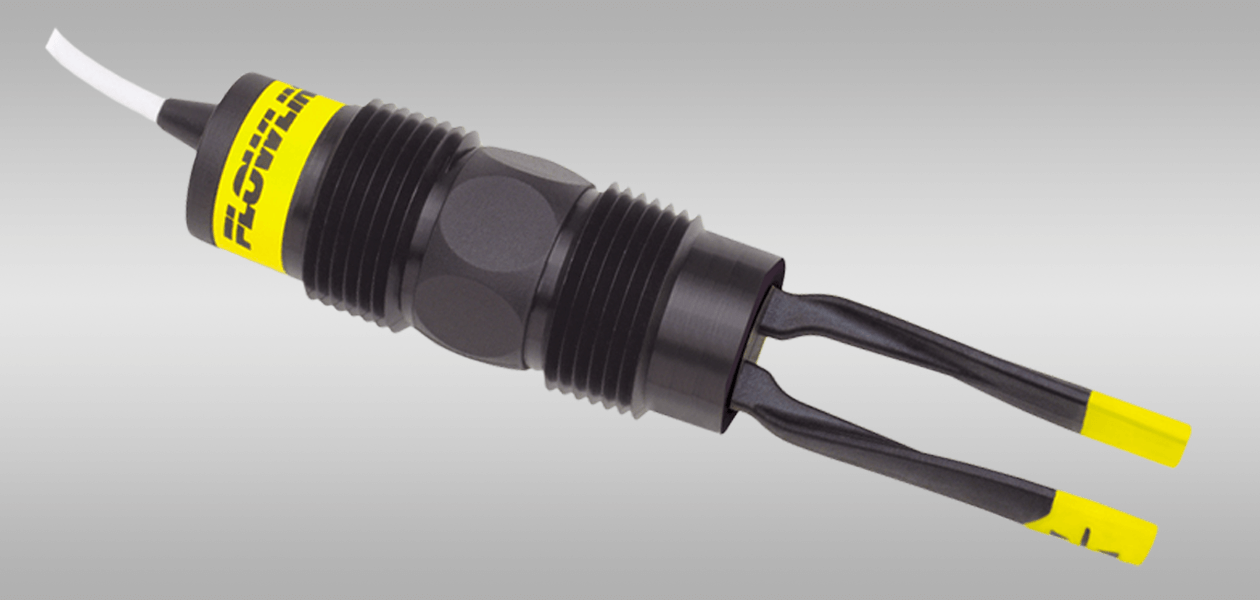

The general purpose vibration point liquid level switch provides high or low liquid level detection of dirty liquids or those with light to medium coating or scaling characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and copper sulfate. For optimum performance, the sensor automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible PP-Ryton® level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.

FEATURES

  • Automatic coating adjustment optimizes sensor performance
  • Submersible Ryton® sensor with polypropylene cable for corrosive liquids
  • Maintenance alarm proactively alerts user if sensor cleaning is required
  • 60VA SPST relay selectable NO or NC via power supply wiring polarity
  • Compatible with Smart Trak and Switch-Pak installation fittings

PRICING

P/N Description From
LZ12 LZ12-1405 GP vibration level switch, Ryton, 1 relay, 3/4″ NPT $385.00
LZ12-1425 GP vibration level switch, Ryton, 1 relay, 3/4″ G $410.00

COMPATIBLE ACCESSORIES

Indicators & Controllers
P/N Description From
LC40-1001 GP level switch controller LC40-1001 GP level switch controller, 120/240 VAC, 10A relay, PP $285.00
LM92 Single NEMA box LM92-1202 Single NEMA box, 35mm rail, windowed, PC $520.00
LM92 Double NEMA box LM92-2202 Double NEMA box, 35mm rail, windowed, PC $552.00
LC10 GP level switch controller LC10-1001 GP level switch controller, 120/240 VAC, 16A relay, PP $300.00
LC06 GP level switch junction box LC06-1001 GP level switch junction box, 6-pole terminal strip, PP $90.00
LC95-2001 Power supply LC95-2001 Power supply, 100-240 VAC, 24 VDC @ 0.45A $335.00

DOCUMENTATION

Orientation: Universal

Accuracy: ± 1mm in water

Repeatibility: ± 0.5mm in water

Supply voltage: 12-30 VDC

Consumption: 25 mA maximum

Contact type: (1) SPST relay

Contact rating: 60 VA, 1A maximum

Contact output: Selectable NO / NC

Maint. alarm: NPN transistor, 10 mA maximum

Process temp.: F: -40° to 176°, C: -40° to 80°

Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C

Sensor rating: NEMA 6 (IP68)

Sensor material: Ryton® (glass filled)

Grommet mat.: Viton®

Cable jack. mat.: Polypropylene

Cable type: 5-conductor, shielded, #24 AWG

Cable length: 10’ (3m)

Process mount: 3/4” NPT (3/4” G)

Mount. gasket: Viton®

Classification: General purpose

Compliance: CE, RoHs

CONTROLLER

For pump, valve or alarm automation, package your level switch with our remote level switch controller.
