APPLICATION

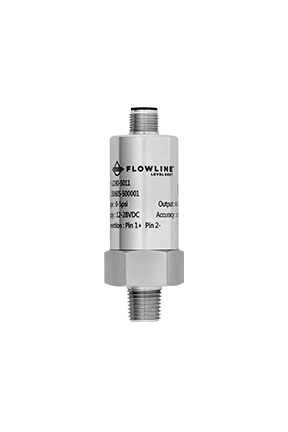

The LD30 general purpose external mount pressure level transmitter provides continuous liquid level measurement up to 34.65’ (10.5m) of water column with a 4-20 mA signal output. Offered in two level measurement ranges and termination types, select the -S_01 model for cable termination or the -S_11 model for M12 connector termination. The LD30 pressure level sensor is well suited for clean liquids compatible with 316 SS such as process water and diluted chemicals.
FEATURES

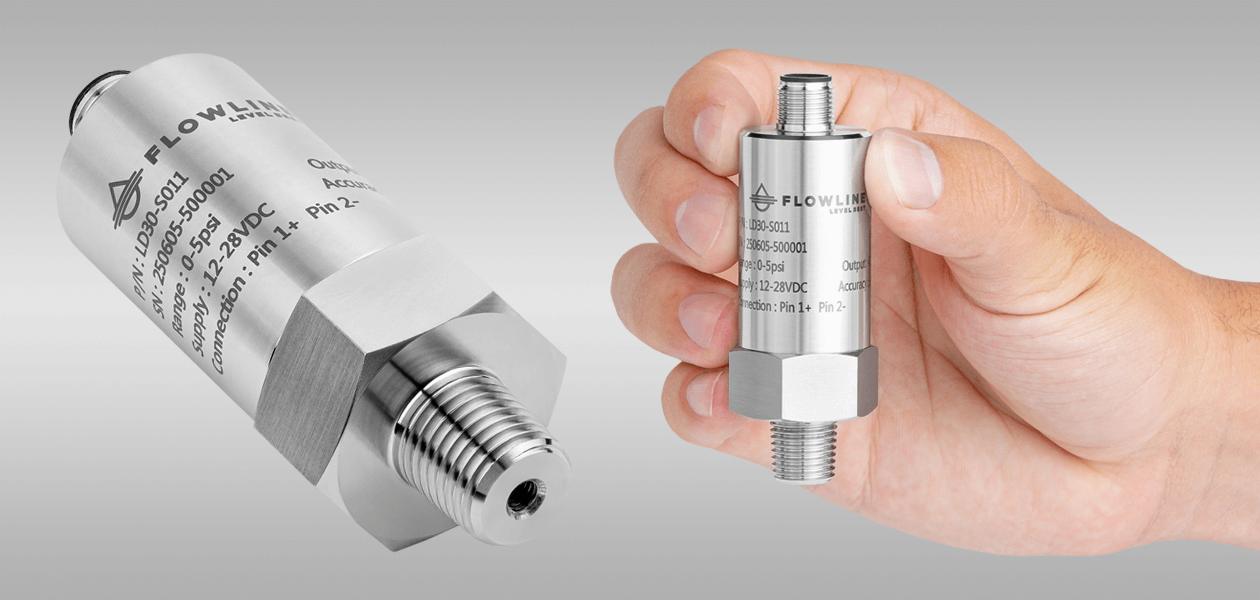

- Rugged 316 SS transducer body and threaded fitting mount
- Offered in cable or connector termination for flexible installation
- Automatic temperature compensation for reliable measurement
PRICING
| P/N | Description | From | |
|---|---|---|---|
 |
LD30-S001 | GP external pressure level sensor, 11.55’ wc (5 psi), cable | $380.00 |
| LD30-S011 | GP external pressure level sensor, 11.55’ wc (5 psi), M12 connector | $380.00 | |
| LD30-S201 | GP external pressure level sensor, 34.65’ wc (15 psi), cable | $400.00 | |
| LD30-S211 | GP external pressure level sensor, 34.65’ wc (15 psi), M12 connector | $400.00 |
COMPATIBLE ACCESSORIES
| P/N | Description | From | |
|---|---|---|---|
 |
LI55-1001 | GP level sensor controller, 85-265 VAC, relay & repeater options | $700.00 |
 |
LI23-1001 | GP level sensor indicator, 12-30 VDC, relay & repeater options | $502.00 |
 |
LM92-1002 | Single NEMA box, 1/8 DIN, windowed, PC | $458.00 |
 |
LM92-2002 | Double NEMA box, 1/8 DIN, windowed, PC | $490.00 |
 |
LC95-2001 | Power supply, 100-240 VAC, 24 VDC @ 0.45A | $335.00 |
DOCUMENTATION
SPECIFICATIONS
Range: -S0_1: 0 to 5 psi (0.34 bar) or 0 to 11.55’ (0 to 3.5m) wc; -S2_1: 0 to 15 psi (1 bar) or 0 to 34.65’ (0 to 10.6m) wc
Accuracy: ± 0.25% of full scale
Configuration: None, fixed span
Supply voltage: 11-28 VDC
Loop resistance: 900 Ohms max @ 30 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: 14º to 176º; C: -10º to 80º
Temp. comp.: Automatic
Burst pressure: 2 x full scale
Response time: 50ms
Process mount: 1/4” NPT
Sensor material: 316 stainless steel
Enclosure rating: NEMA 4X (IP65)

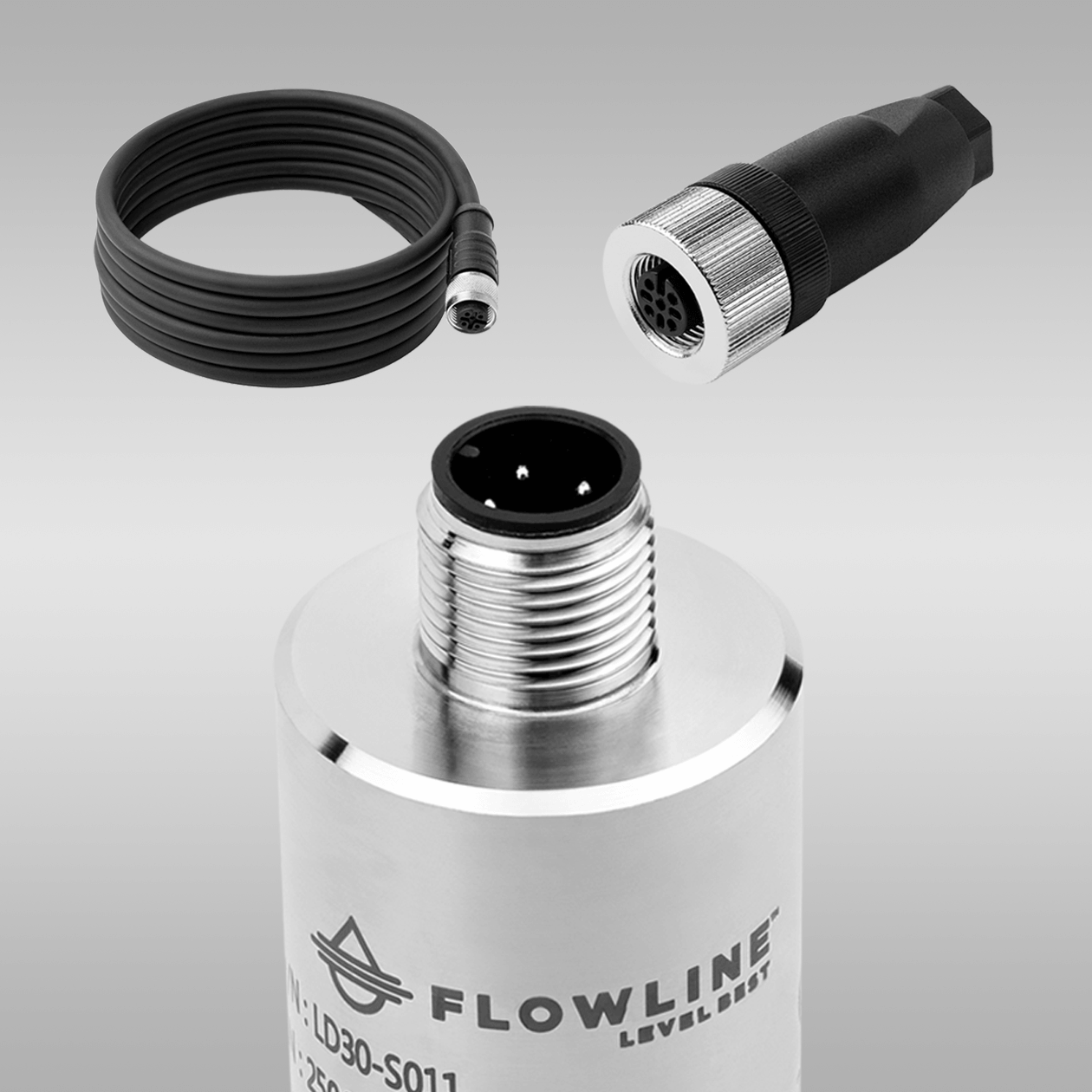

Termination: -S_01: Cable; -S_11: M12 connector (male)
Cable type: -S_01: 2-conductor, shielded
Cable material: -S_01: PUR (polyurethane)
Cable length: -S_01: 9’ (2.7m)
Classification: General purpose
Compliance: CE, RoHS
EXTERNAL MOUNT

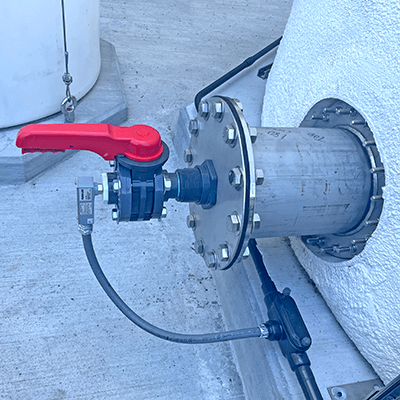

The externally mounted pressure sensor provides a simple, low-cost, level measurement solution for metal tanks, and is easily installed via a 1/4” tee or tap fitting located in the tank’s drain or inspection port.
