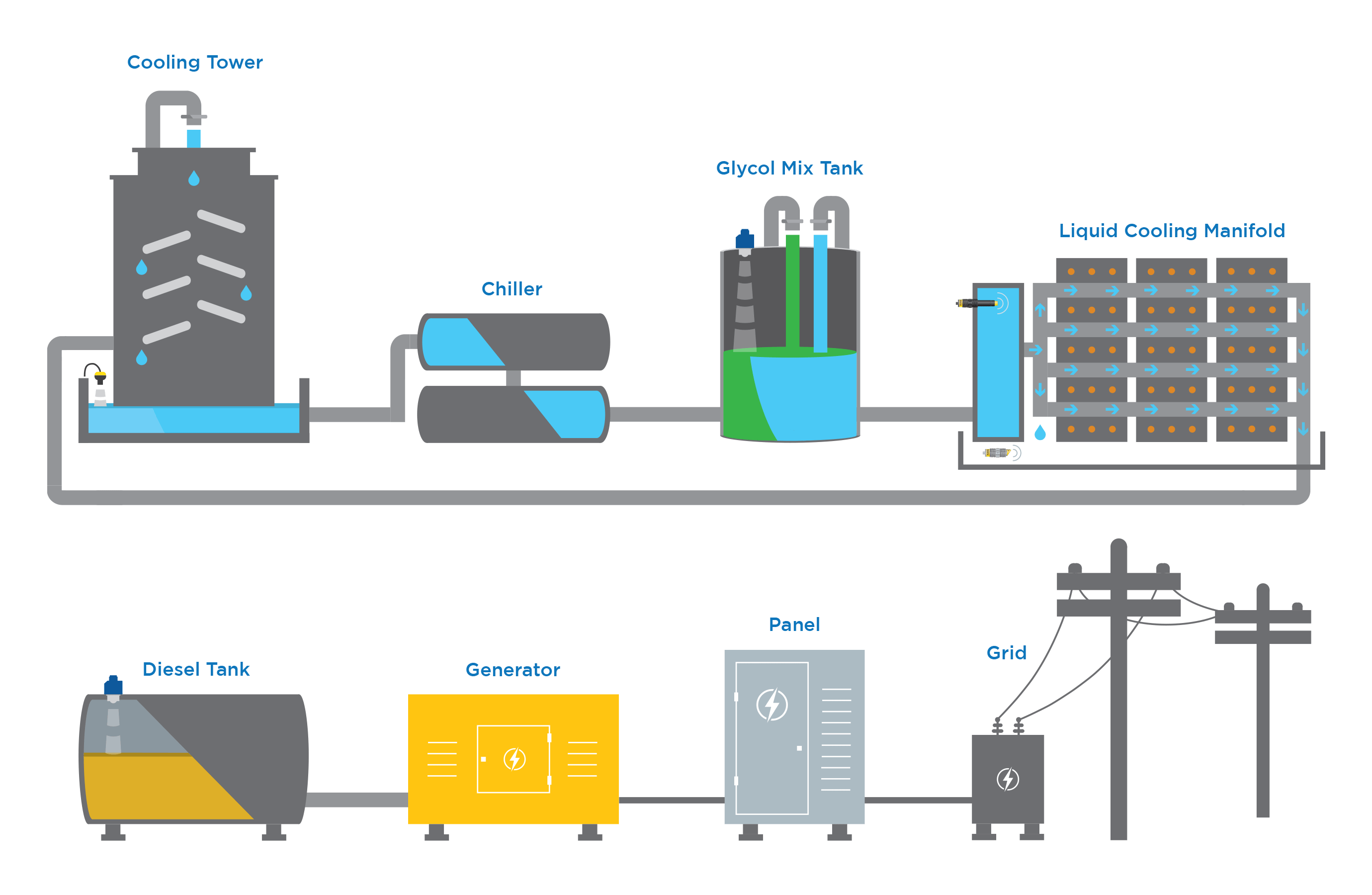

Data Center Level Map

Cooling Tower

Level Transmitters


Series	LR80	UG01	DL10
Technology	80-GHz radar	Ultrasonic	Ultrasonic
Classification	General purpose	General purpose	General purpose
Corrosive	Yes	Yes	Yes
Foam	Yes	No	No
Vapor	Yes	Minimal	Minimal
Condensation	Yes	Yes	No
Max. range	32.8' (10m)	4.9' (1.5m)	4.1' (1.25m)
Output	4-20 mA	4-20 mA	4-20 mA
Max. temperature	140º F. (60º C.)	176º F. (80º C.)	140º F. (60º C.)
Max. pressure	43.5 PSI (3 bar)	30 PSI (2 bar)	30 PSI (2 bar)
Mount	1 1/2" NPT (G)	2" NPT	1" NPT (G)
Configuration	LevelTap App	WebCal software	WebCal software
Probe material	PVDF	PVDF	PVDF
From	$795.00	$550.00	$415.00

Glycol Mix Tank

Level Transmitters


Series	LR80	LR83	UG03
Technology	80-GHz radar	80-GHz radar	Ultrasonic
Classification	General purpose	General purpose or intrinsically safe	General purpose
Corrosive	Yes	Yes	Yes
Foam	Yes	Yes	No
Vapor	Yes	Yes	Minimal
Condensation	Yes	Yes	Yes
Max. range	32.8' (10m)	98.4' (30m)	9.8' (3m)
Output	4-20 mA	4-20 mA with HART	4-20 mA
Max. temperature	140º F. (60º C.)	212º F. (100º C.)	176º F. (80º C.)
Max. pressure	43.5 PSI (3 bar)	43.5 PSI (3 bar)	30 PSI (2 bar)
Mount	1 1/2" NPT (G)	1 1/2" NPT (G)	2" NPT (G)
Configuration	LevelTap App	Push button, LevelTap App	WebCal software
Probe material	PVDF	PVDF	PVDF
From	$795.00	$1,055.00	$625.00

Cooling Manifold

Level Transmitters


Series	LP15	LO10
Type	Capacitance switch	Optic switch
Classification	General purpose	General purpose
Application	Manifold level switch	Manifold leak switch
Installation	Through side or top wall	Inside containment sump
Supply	12-36 VDC	12-36 VDC
Contact	(1) SPST relay	(1) SPST relay
Rating	60 VA (1A max)	60 VA (1A max)
Termination	Cable	Cable
Enclosure	NEMA 6 (IP68)	NEMA 6 (IP68)
Mount	3/4" NPT (G)	3/4" NPT (G)
Max. pressure	150 PSI (10 bar)	150 PSI (10 bar)
Max. temperature	176º F. (80º C.)	176º F. (80º C.)
Material	PP	PP / PFA
From	$335.00	$210.00

Diesel Tank

Level Transmitters


Series	LR80	LR83	US06
Technology	80-GHz radar	80-GHz radar	Ultrasonic
Classification	General purpose	General purpose or intrinsically safe	Intrinsically safe
Corrosive	Yes	Yes	Yes
Foam	Yes	Yes	No
Vapor	Yes	Yes	Minimal
Condensation	Yes	Yes	Yes
Max. range	32.8' (10m)	98.4' (30m)	19.6' (6m)
Output	4-20 mA	4-20 mA with HART	4-20 mA
Max. temperature	140º F. (60º C.)	212º F. (100º C.)	176º F. (80º C.)
Max. pressure	43.5 PSI (3 bar)	43.5 PSI (3 bar)	30 PSI (2 bar)
Mount	1 1/2" NPT (G)	1 1/2" NPT (G)	2" NPT (G)
Configuration	LevelTap App	Push button, LevelTap App	Push button, WebCal software
Probe material	PVDF	PVDF	PVDF
From	$795.00	$1,055.00	$1,040.00
