APPLICATION

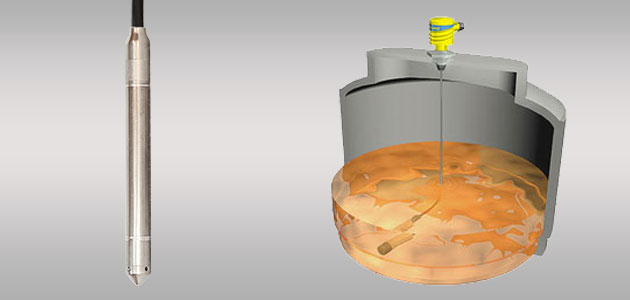

The general purpose small-bore submersible pressure level transmitter provides continuous level measurement up to 100’ (30.4m) of water column with a 4-20 mA signal output. Select this liquid level sensor for down hole monitoring of relatively clean water. Application examples include ground water, surface water, dewatering, ballast tanks and remediation.
FEATURES
- Strong cable design with maintenance free breather tube and vent filter
- Narrow tapered body designed for easy down hole installation and removal
- Corrosion resistant 316 SS body with fluoroelastomer seal and polyurethane cable
- Temperature compensation, lightning and surge protection for reliability
PRICING
| P/N | Description | From |
|---|---|---|
| LD34-S101 | Polyurethane cable, 11.55′ wc (5 psi) | $880.00 |
| LD34-S111 | Polyurethane cable, 15′ wc (6.5 psi) | $915.00 |
| LD34-S121 | Polyurethane cable, 20′ wc (8.6 psi) | $945.00 |
| LD34-S131 | Polyurethane cable, 30′ wc (13 psi) | $975.00 |
| LD34-S141 | Polyurethane cable, 50′ wc (21.6 psi) | $995.00 |
| LD34-S151 | Polyurethane cable, 100′ wc (43.3 psi) | $1,025.00 |
DOCUMENTATION
Data Sheet | Quick Start | Manual | Brochure | Addendum
SPECIFICATIONS
Range: -SX01: 0 to 5 psi (0.34 bar), 0 to 11.55’ (0 to 3.5m) wc, -SX11: 0 to 6.5 psi (0.45 bar), 0 to 15’ (0 to 4.6m) wc, -SX21: 0 to 8.6 psi (0.60 bar), 0 to 20’ (0 to 6.1m) wc, -SX31: 0 to 13 psi (0.90 bar), 0 to 30’ (0 to 9.1m) wc, -SX41: 0 to 21.6 psi (1.49 bar), 0 to 50’ (0 to 15.2m) wc -SX51: 0 to 43.3 psi (2.99 bar), 0 to 100’ (0 to 30.5m) wc
Accuracy: ± 0.25% of full scale
Configuration: None, fixed span
Supply voltage: 10 to 33 VDC
Loop resist.: 1000 Ohms @ 30 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: -4° to 176°, C: -20° to 80°
Temp. comp.: F: 0° to 158°, C: -18° to 70°
Thermal effect: ±0.45% FS TEB
Proof pressure: 2 x full scale
Response time: <50ms
Sensor weight: 0.235 lb (0.107 kg)
Cable weight: 0.037lb (0.0009 kg) per foot
Sensor material: 316 SS
Seal material: Fluoroelastomer
Cable type: 2-conductor, shielded with vent tube
Cable length: – S101 & S111: 40’ (12.2m), -S121 & S131: 60’ (18.3m)
Cable material: Polyurethane
Classification: General purpose
Compliance: CE
